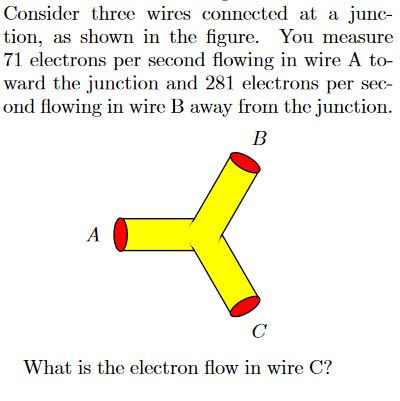

44 consider the juncion of three wires as shown in the diagram.

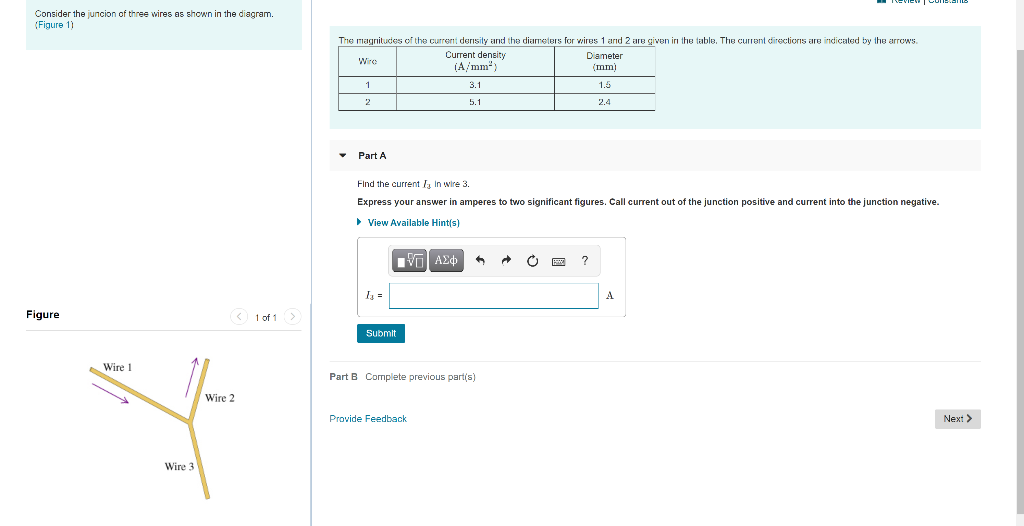

Consider the juncion of three wires as sho... | Clutch Prep Consider the juncion of three wires as shown in the diagram. (Figure 1) The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table. The current directions are indicated by the arrows. WireCurrent density (A/mm2)Diameter (mm)13.11.624.92.8. Find the current I 3 in wire 3. Consider The Juncion Of Three Wires As Shown In The ... Consider The Juncion Of Three Wires As Shown In The Diagram. (Figure 1) / Principles Of Analog In Circuit Testing Evaluation Engineering : There are pictorial diagrams that show wires and components roughly as they appear, and in the last chapter, we have shown that electrical energy must be supplied to maintain a constant current in a closed circuit.

Solved Consider The Juncion Of Three Wires As Shown In The ... You are watching: Consider the juncion of three wires as shown in the diagram. (figure 1) Call existing out the the junction hopeful and. Discover the magnitude and direction of the magnetic eld at point p as result of the two 1.50 mm segments of cable that room opposite every other and also 8.00 cm from point p.

Consider the juncion of three wires as shown in the diagram.

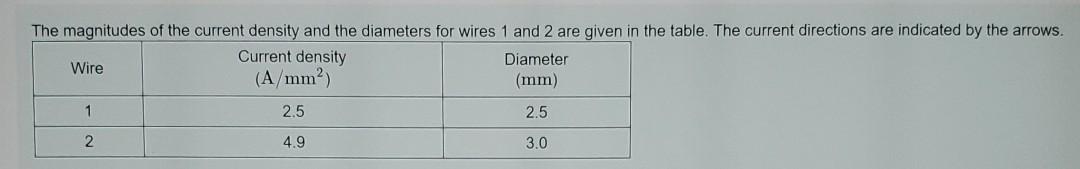

OneClass: Consider the junction of three wires as shown in ... 11 Dec 2019 Consider the junction of three wires as shown in the diagram. The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table. The current directions are indicated by the arrows. What is the current I3 in wire 3? (Current out of the junction positive and current into the junction negative). Solved Consider the juncion of three wires as shown in the ... Question: Consider the juncion of three wires as shown in the diagram (Figure 1) Express your answer in amperes to two significant figures. Call current out of the junction positive and current into the junction negative. View Available int(a) 15 -13 A Previous Answers Correct Important: If you use this answer in later parts, use the full ... 37 consider the juncion of three wires as shown in the ... Transcribed image text: Review Constants Consider the juncion of three wires as shown in the diagram. (Figure 1) The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table. The current directions are indicated by the arrows Wire Current density Diameter (A/mm) 1 22 1.5 2 5.7 3.0 Figure 1 of 1 Part A Wire1 Find the current is in wire 3.

Consider the juncion of three wires as shown in the diagram.. PDF assignmentPrint?assign Hint A.3 Three resistors in series Consider three resistors of resistance , , and that are connected in series. They are equivalent to a resistor with resistance , which is given by . ANSWER: = Part B Two resistors of resistance = 3.00 and = 3.00 are added to the network, and an additional resistor of 42 Consider The Juncion Of Three Wires As Shown In The ... - Transtutors Consider the juncion of three wires as shown in the diagram. (Figure 1) Part A) Find the current I 3 in wire 3. Express your answer in amperes to two significant figures. Call current out of the junction positive and current into the junction... Semiconductor Electronics: Materials ... PDF Kirchhoff's Rules and Applying Them - hi Kirchhoff's junction rule: The algebraic sum of the currents into ... Consider the circuit shown. All wires are considered ideal; that is, they have zero resistance. We will assume for now that all other elements of the circuit are ideal, too: The value of resistance is a constant, the internal ... as shown in the next diagram. in the figure, what is the current in the wire above the ... 35 Three loops of wire move near a long 36 taking r=1.00k and e=250v 37 In the figure four long straight wires are perpendicular to the page 38 Find the potential of point a with respect to point b in the figure (figure 1) What is the current in the wire above the junction? The current in the wire above the junction is 5A.

PDF The Magnetic Field - Old Dominion University wire is long enough to be considered infinite?? R i B π μ 2 = 0 Problem Consider the long, straight, current-carrying wires shown in the figure. One wire carries a current of 6.2 A in the negative y direction; the other carries a current of 4.5 A in the positive x direction. Calculate the magnitude and direction of the net magnetic field at ... Module 24: DC Circuits Flashcards - Quizlet Ideal wires refer to the wires we draw in a circuit diagram and have no resistance, and therefore have the same electric potential at all points on the wire. Consider the following statement: "If you connect another resistor to an existing network of resistors, the total equivalent resistance will decrease." The figure shows three long straight wires P. Q and R ... The figure shows three long straight wires P. Q and R carrying currents normal to the plane of the paper. All three currents have the same magnitude. Which arrow best shows the direction of the resultant force on the wire P A A B B C C D D Medium Solution Verified by Toppr Correct option is C) Now from P-Q: Currents are in opposite drection. Solved Consider the juncion of three wires as shown in the ... Consider the juncion of three wires as shown in the diagram. (Figure 1) The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table. The current directions are indicated by the arrows. Wire Current density Diameter (A/mm) (mm) 1 3.9 2.3 2 4.0 3.1 Part A Find the current 13 in wire 3.

Consider the juncion of three wires as shown in the diagram. Consider the juncion of three wires as shown in the diagram. Subject: Physics Price: 2.85 Bought 3. Share With. Consider the juncion of three wires as shown in the diagram. (Figure 1) The magnitudes of the current density and the diameters for wires 1 and 2 are given in the table. The current directions are indicated by the arrows. Answered: Consider the junction of 3 wires at the… | bartleby Solution for Consider the junction of 3 wires at the bottom of the circuit shown for Problem 4. If the current flowing downward into the junction is 1 Amp, and… Answered: Review | Constants The magnitudes of… | bartleby The current directions are indicated by the arrows. Current density Diameter Wire Consider the juncion of three wires as shown in the diagram. (Figure 1) (A/mm²) (mm) 1 2.7 1.8 2 4.4 2.6 Figure < 1 of 1 > Part A Find the current I3 in wire 3. Wire 1 Express your answer in amperes to two significant figures. In the circuit shown in figure, find the current through ... In the circuit diagram shown in Figure, ... What is the current I for the circuit shown in the figure? Medium. View solution > View more. CLASSES AND TRENDING CHAPTER. class 5. The Fish Tale Across the Wall Tenths and Hundredths Parts and Whole Can you see the Pattern? class 6.
