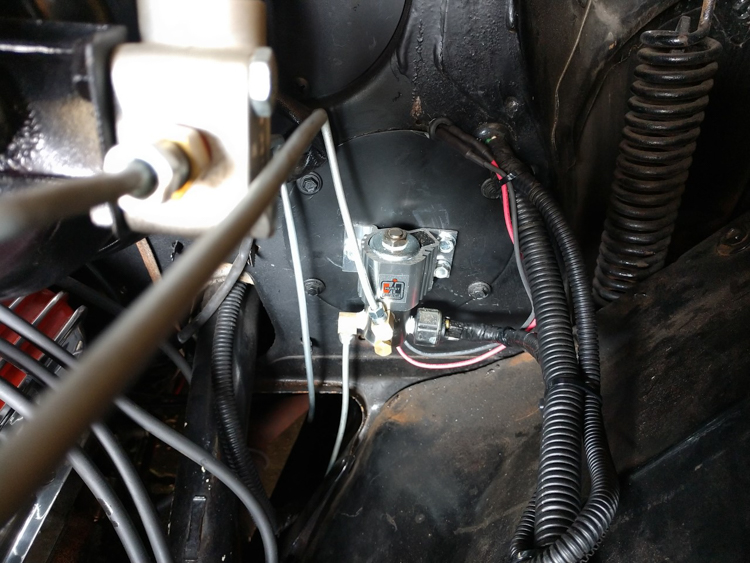

Line Lock Install - NastyZ28.com Cap one port at the valve, run a line from the linelock In port to the open port on the valve. Then using a "T" connect the 2 lines from the front brakes together along with a third line going back to the line lock out port. I hope this helps. Good Luck. By the way I have the instructions along with a picture diagrams of the brake system. Hurst Line Lock Wiring Diagram - schematron.org Apr 12, 2018 · Once line is. Below is a picture of my Hurst Line Lock and a diagram of how I wired it. I disliked the large red bulb supplied with the Hurst kit so I wired it to light the factory BRAKE idiot light in the dash instrument cluster. Wiring: All wiring connections should be soldered and covered with shrink sleeving. 1.

Line Lock | Roll Control Installation - YouTube Here I show you how I installed the line lock in my g-body. [UNBOXING VIDEO] I also show you my favorite and what I think is the best AN JIC fitting flaring ...

Hurst line lock wiring diagram

T56 Electrical Connectors - Team Camaro Tech I received a wiring diagram from O1mrquick (Thanks). I just haven't found a source for the connectors yet. I wanted to wire the reverse lockout to a shifter mounted switch (think Hurst line lock T handle), the speedomter to my Autometer electric speedometer and the backup lights to, well, my backup lights. Line lock: Install before distribution ... - Team Camaro Tech I am looking to install a hurst roll control / line lock "inline" between the master cylinder and the rectangle distribution / splitter block. I have manual drum brakes and do not have any metering or proportioning valves. From what I understand, the rectangle block is simply a distribution... Line-Lock Installation - joelynch.org Put a ground lug on the solenoid ground wire under the 1/4" solenoid mounting bolt. The metric fitting kit is needed to fit the MC1 line going to the ABS unit and to fit the ABS unit MC1 port. The Hurst solenoid uses 3/16" tubing and fittings and the ABS module has 10 mm fittings in it.

Hurst line lock wiring diagram. PDF Installation Instructions Quarter Stick Shifter 1. Install the supplied female crimp terminals to two suitable lengths of wire using at least 16 gauge wire. 2. Plug each female connector onto the spade terminals of the micro switch located in the plastic switch housing. 3. Using the wiring diagram below as a guideline, install the switch wires into your starting circuit. 4. My 1976 Nova SS Specs - NovaResource Hurst Line-Lock [ Wiring Diagram] The Wheels. 15 x 5 (3.5" backspacing) Weld DragLite II front 15 x 8 (4.5" backspacing) Weld DragLite II rear The Tires. 215/65-R15 BF Goodrich Radial T/A's front 255/60-R15 BF Goodrich Radial T/A's rear 235/60-R15 BF Goodrich Drag Radials rear 26 x 10.5 x 15 Mickey Thompson Sportsman Pro rear ... Hurst line lock wiring problem - Camaro5 Chevy Camaro ... Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums - Camaro5.com > Technical Camaro Topics > Camaro DIY & HOW-TO instructions & discussions: Hurst line lock wiring problem Mustang Hurst Line Lock (1975-2014) Installation Instructions 2. Find a location to place the Hurst Line Lock Solenoid from the Hurst Line Lock Kit. An easy location is by the master cylinder and distribution block. 3. Use a drill and the 7/32-inch drill bit to drill three holes in the metal. 4. Fasten the solenoid to the Mustang engine bay using the supplied 10mm bolts. 5.

Line lock - Team Chevelle I've been looking at the Hurst roll control/line lock kits on Summit and eBay, then looked at the Hurst plumbing diagram and have a problem with it.....someone on another thread said something about a car not passing tech IF you went from the master cylinder to the roll control/line lock solenoid, then to a proportioning valve which splits to the right front and left front brake lines. wiring help for hurst line lock - StangNet - Ground line lock unit at closest chaisis spot. - Ran a single wire inside the car through gromet by brake cylinder. This is for powering the line lock. - Inside the car I used the cig lighter for power. Used a simple splice/tap connector to tap the wire with out having to cut it. - The switch goes in the power line with a fuse. Hurst "Roll Control" (line lock) wiring? - Camaro5 Chevy ... Hurst "Roll Control" (line lock) wiring? Today a young friend of mine installed my Hurst line lock, but I think there is something wrong with wiring. I'm electrically challenged, but the way I read the instructions the momentary switch light is supposed to come on when you turn on the rocker switch. Line Lock Wiring - NovaResource Line Lock Wiring This site is best viewed in 1024x768 resolution. Disclaimer: Below is a picture of my Hurst Line Lock and a diagram of how I wired it. I disliked the large red bulb supplied with the Hurst kit so I wired it to light the factory BRAKE idiot light in the dash instrument cluster. I tapped the power at the parking brake switch and ...

Hurst Roll Control - Holley fuse holder with a 4amp fuse is provided (- see wiring diagrams for wiring details on page-9) ands 8 should be incorporated into the wiring circuit. The fuse can protect the electrical system in the event of a short circuit. Technical Support (866) 464-6553 5 . . 10. Recommended Installation Method: Thread Slp Line Lock Wiring Diagram Stereo & Electronics - Need SLP Line Lock Wiring Diagram - Somehow lost the instructions when messing around with my car and now need. Disconnect negative (-) battery terminal. If more wire is needed than what is provided, use #18 gauge standard insulated automotive wire to assure good. Installation Instructions HURST ROLL CONTROL Cylinder Front Brake Line to Screw into Hurst Brake Line 8. Recommended Installation Method: Thread the Hurst Roll Control brake line into the OEM front brake line, however do not completely tighten fitting at this time to allow for minor adjustments. Thread the Hurst Roll Control brake line into the adapter, finger tight. Line lock installation - The BangShift.com Forums Line lock installation. March 14, 2010, 03:55 PM. I found a new Hurst Line Lock today at Long Beach Swap. I have a couple questions about installing one. First, all the install diagrams show the brake line comes out of the solenoid and T's off to the two front brakes, but it has three outlets.

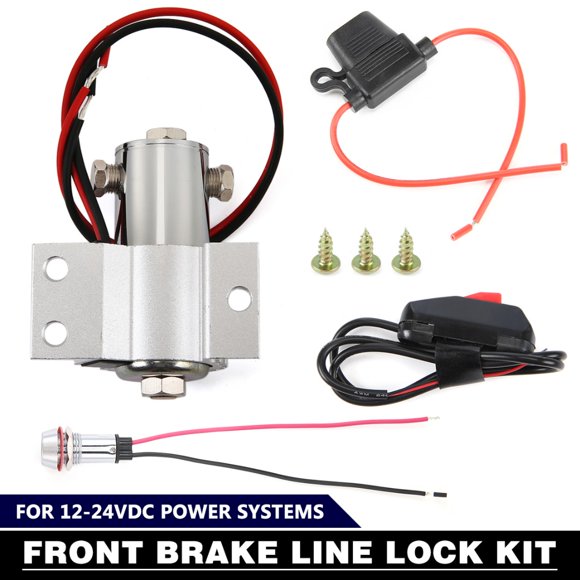

How to Install Line Lock - Speedway Motors This Line Lock has multiple ways to lock the brakes on your vehicle. It allows you to lock the front brakes only, the rear brakes only, or lock all four corners. Another nice feature is you can add a brake light pressure switch right into the housing of the valve to simplify wiring in brake lights.

What Is Line-Lock, And How Does It Work? - Holley Motor Life Put simply, Line-Lock is a solenoid that you activate from inside your car. A solenoid is a simple device made up of only a few pieces: a coil of tightly wound copper wire, a housing, and a plunger made of magnetic material. When electrical current is applied to the coil, a magnetic field forms, which draws the plunger in and converts the ...

PDF Hurst Roll Control Installation Instructions # 5671517 ... 1/4" Lock Washer (2) ... 13mm wrench on brake line nut Clean Rag STEP 7. Install Hurst Roll Control mounting bracket. Add a few drops of loctite (red) to bolt threads.Place first ... (See wiring diagram for wiring details) and should be incorporated into the wiring circuit. The fuse can protect the electrical system in

Hurst Roll Control Set Up and Install Part 1 - RacingJunk News Hurst Roll Control Set Up and Install Part 1 1. Hurst's Roll Control (or "Line Lock") is a pretty simple device. Once engaged by way of a switch, the solenoid maintains brake fluid pressure at the front wheels on your car. The back brakes have no pressure, allowing you perform an effortless burnout. Back to Post.

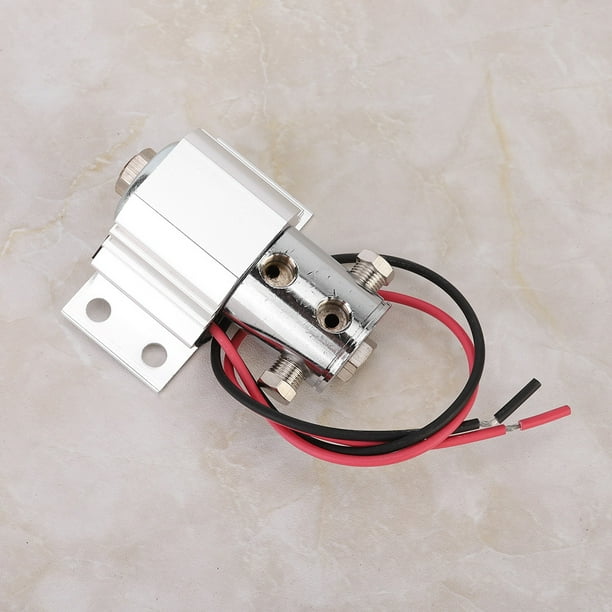

Hurst 1745000 Hurst Roll/Control, Line/Loc Kit - Universal The Hurst® Roll/Control® is used primarily in drag racing to provide positive locking action to the front wheels of race cars, reducing the chance of "Rolling the Lights" and producing more effective "Burn Outs" for heating up the tires. Rigorous testing has proved a 1/100,000 of a second release time and vibration tests have seen up to 30 G's applied without mechanical failure. Adaptable to ...

Line Lock Install | Ford Mustang Forums 332 Posts. #4 · Feb 1, 2022. Install after the proportioning valve. Now as far as the ABS you have a few options. 1.Run it as is and see if the ABS yells at you. 2. Run it as is and pull the fuse to the ABS when racing or put the power to the ABS on a switch. 3. Install the line lock on the REAR brakes.

JEGS 63002 Line Lock Installation Instructions Wiring: All wiring connections should be soldered and covered with shrink sleeving. 1. Disconnect battery. 2. Wire per diagram on next page. 3. Reconnect battery and test for correct operation. Operation: TO ACTIVATE: Depress brake pedal and hold, depress control switch and hold, release brake pedal. Brakes are now locked.

LineLock/Transbrake/2-Step Wiring Help Needed ... I think I have the basic wiring nailed down, just need some help with the indicator lights. Here's what I want for functionality: 1. I want to activate the Line Lock, Transbrake and 2-Step off my Shifter Handle Button. 2. I want the 2-Step and Transbrake to be wired together on one toggle switch and the Line Lock on another toggle switch. 3.

HURST ROLL CONTROL INSTALLATION INSTRUCTIONS # 5671518 2010 ... (See wiring diagram on page 7) WIRING INSTALLATION STEP 10. Pass wiring through existing access points ( one is located on the driver’s side firewall). Avoid allowing wires to chafe by using the existing or a new grommet. 12V source NOTE: The Hurst Roll Control Solenoid Valve is designed for 12V DC operation only. For added safety,

Line lock not holding - Yellow Bullet Forums wow , ive had same hurst line lock since 1983, this is the third car it has been in and i got it USED . did not know you needed to rebuild them every few years. think ill leave it alone . Save Share. Reply. 1 - 20 of 27 Posts. 1; 2; Next. 1 of 2 Go to page. Go. Join the discussion. Continue with Facebook.
