CTQ is the abbreviated term for Critical to Quality. CTQ tree is a Six Sigma tool that is based on diagrams and helps to manufacture and provide superior quality products to customers. CTQ trees are used to interpret extensive and broader customer requirements into particular, precise, litigable and calculable performance demands.

A tree diagram breaks down a central concept, issue, or activity into increasingly smaller components. In Six Sigma, tree diagrams are used for determining root causes, brainstorming ideas related to a central topic, understanding a process from top to bottom, and approaching issues systematically. This is a useful tool for teams at many levels.

It therefore resembles a tree in its finished state, with the main concept serving as the trunk, while subconcepts branch off. For a better understanding of a Tree Diagram and an overview of Lean Six Sigma, check out our Free Lean Six Sigma Yellow Belt Training, Green Belt Training or Lean Training. tree diagram Voice of the Customer (VOC)

Tree diagram six sigma

A Tree diagram helps you break down big concepts into progressively greater detail, so that doesn't work. A Prioritization Matrix is used to help prioritize potential solutions by rating each solution found based on specific criteria using numeric values, so that is a poor answer.

Tree Diagram. SHARE ON: ... November 25, 2020 Study Finds Lean Six Sigma Can Boost Food Industry Performance Read more . July 29, 2020 Six Sigma Certifications Among Those Increasing In Market Value Read more . July 27, 2020 Six Sigma Among Skills Needed For a Post-Coronavirus America

Tree Diagram Definition of Tree Diagram: « Back to Glossary Index Breaks down or stratifies ideas in progressively greater detail. The objective is to partition a big idea or problem into its smaller components, making the idea easier to understand, or the problem easier to solve. « Back to Dictionary Index iSixSigma Recommends

Tree diagram six sigma.

Methodology Six Sigma Tree Diagram Definition A Tree Diagram is a chart that begins with one central item and then branches into more and keeps branching until the line of inquiry begun with the central item is exhausted. The tree diagram, with its branching steps, motivates you to move from the general to the specific in a systematic way.

• Used in the Define step of virtually every Lean Six Sigma project as the primary mechanism for turning general customer "wants" into specific Critical-To-Quality requirements. How to Create a CTQC Tree Diagram 1. Generate ideas. Use the Brainstorming tool to generate a list of ideas. 2. Start with the What (general goal statement). 3.

4) Fishbone Diagram. Also called the Ishikawa diagram, a fishbone diagram is a useful tool in conducting root cause analysis. Similar to the fault tree diagram, it is named after its shape-a fishbone-and is used to group causes into different sub-categories like methods, measurements, materials and many others for easier determination of ...

Six Sigma DMAIC Process - Define Phase - CTQ Drilldown Tree CTQ (Critical to Quality) drilldown tree is a tool that can be used to effectively convert customer's needs and requirements to measurable product/service characteristics, to establish linkage between Project "Y" & Business "Y" and to bound the project or to make the project manageable.

In the previous topic, you created a tree diagram. Key issues identified must also be sorted in the order of their importance. ... In a Six Sigma project, it can be used for filtering or prioritizing either causes or solutions. For example, the cause-and-effect matrix is a prioritization matrix used for prioritizing causes, while the criteria ...

The tree diagram requires an owner who is dedicated to the task; beyond this person, the deployment team as a whole must be committed to the rigor of constructing the UDEs and their numerous interactions. Maintaining the momentum of a Lean Six Sigma program is crucial in order to reduce the doubt, skepticism and cynicism that can creep in when ...

ASQ Six Sigma Green Belt Study Guide The ASQ Six Sigma Green Belt Study Guide is a free, quick-reference list of essential material to prepare for and pass the certification exam. Master the ASQ Six Sigma Greenbelt Body of Knowledge with this Study Guide. Speaking of passing their exam, did you know that 100% of the people who

Join for free Tree Diagrams Six Sigma and the Organization (Advanced) University System of Georgia 4.7 (2,775 ratings) | 49K Students Enrolled Course 1 of 4 in the Six Sigma Green Belt Specialization Enroll for Free This Course Video Transcript

Six Sigma Management and Planning tools: 1.Affinity diagram 2.Tree diagram 3.Process decision program chart (PDPC) 4.Matrix diagram 5.Interrelationship diagraph 6.Prioritization matrices 7.Activity network diagram Affinity Diagrams The affinity diagram method is a technique for problem solving.

Free Download Six Sigma Diagram Templates Online. Various business diagram templates on this sharing community are available to download and customize, including SWOT matrix, marketing diagram, fishbone, value stream, business forms and etc. Upload your own great works with others and enjoy the resources together. Try It Now Buy Now.

A Critical to Quality Tree (also known as a CTQ Tree) is a Six Sigma tool used to identify the needs of the customer and translate that information into measurable product and process requirements. It allows organizations to understand the characteristics of a product or service that most drives quality for customers.

→ A tree diagram represents the hierarchy of tasks and subtasks needed to complete. → The tree diagram starts with one item and then divided into different branches. Then each branch is again divided into two or more, and so on. → The finished diagram looks like a tree, with a trunk and multiple branches. So that it is known as a tree ...

Ctq | critical to quality tree diagram excel

A tree diagram is a new management planning tool that depicts the hierarchy of tasks and subtasks needed to complete and objective. The tree diagram starts with one item that branches into two or more, each of which branch into two or more, and so on. The finished diagram bears a resemblance to a tree, with a trunk and multiple branches.

Lean six sigma | continuous improvement: judul project six sigma

Six Sigma Tools - Fault Tree Analysis. The Fault Tree Analysis (FTA) was first launched by Bell Laboratories and is likely one of the most generally used strategies in system reliability, maintainability and security analysis. It's a deductive process used to find out the varied combos of hardware and software program failures and human errors ...

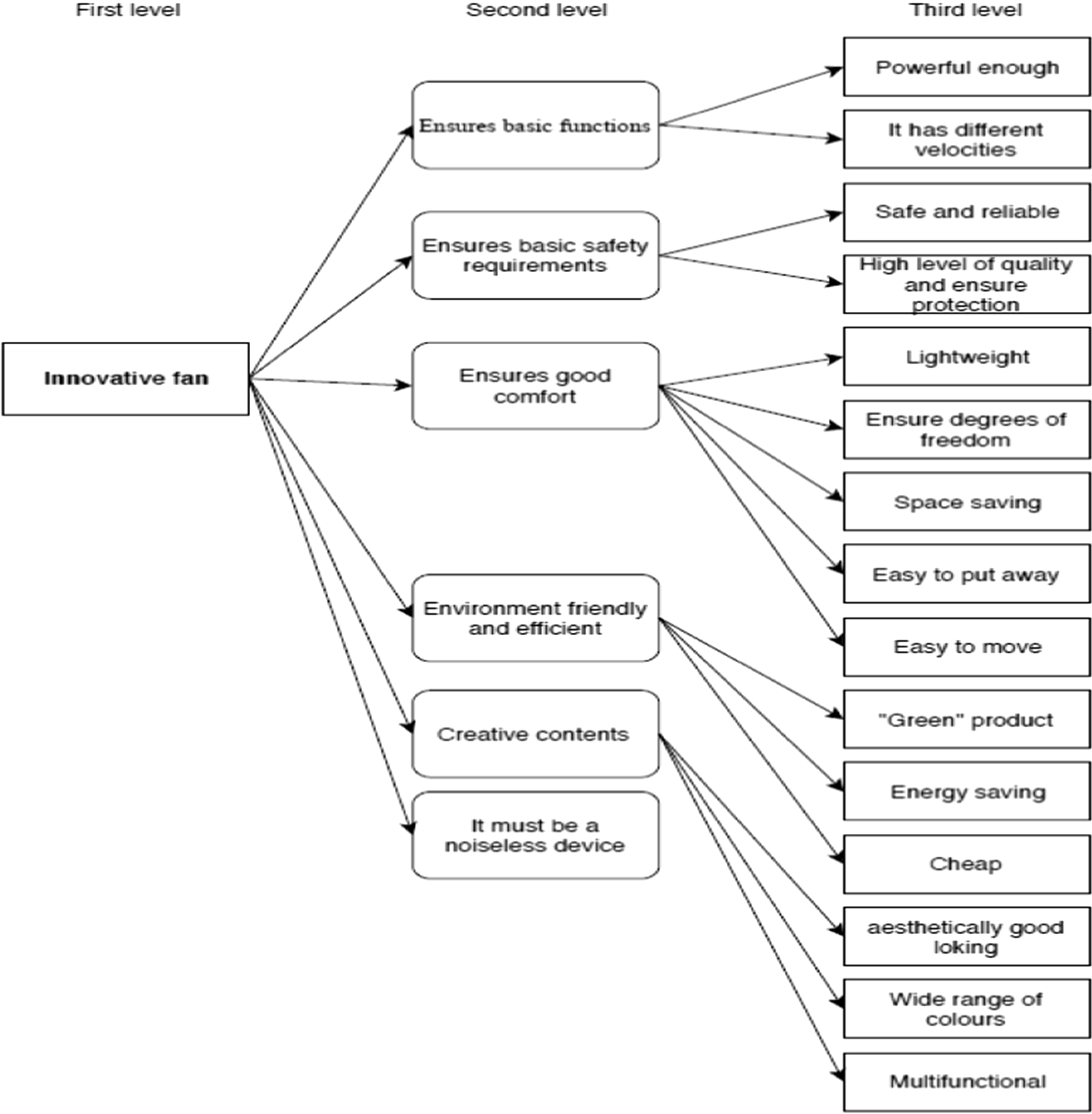

Critical to quality (ctq) tree | download scientific diagram

Tree Diagram - Six Sigma Study Guide Tree Diagram A Tree diagram helps you break down big concepts into progressively greater detail. The idea here is to systematically breaking down a concept into its constituent pieces. You would progress from left to right with the highest order items / most important concepts on the left.

Critical to quality tree templates

Six Sigma Terms Tree Diagram A Tree Diagram is a chart that begins with one central item and then branches into more items and keeps branching until the line of inquiry begun with the central item has been exhausted. The tree diagram, with its branching steps, motivates the team to move from the general to the more specific in a systematic way.

Implementasi six sigma untuk peningkatan kualitas sandal di ...

The focus here is on four kinds of "trees" or hierarchical diagrams that become part of many Six Sigma projects: Cause-and-effect diagrams Y -to- x flowdown diagrams Functional analysis diagrams Abstraction diagrams (KJ or affinity)

Affinity diagram and relations diagram: illustration with practical examples

FTA Diagram. History of Fault Tree Analysis. Fault tree analysis is a top down approach that was originally developed in Bell laboratories by H Waston and A Mearns for the air force in the year 1962. This concept later adopted by Boeing and today it is widely used in aerospace, automobile, chemical, nuclear and software industries especially ...

Tree diagram - six sigma study guide

CT Tree Diagram and Six Sigma Projects. 2020-04-02T04:49:29-06:00 By International Society of Six Sigma Professionals | 0 Comments.

Tree diagram in excel | ctq | driver diagram | decision tree

Six Sigma Terms Tree Diagram Staff, January 4, 2013 A Tree Diagram is a chart that begins with one central item and then branches into more items and keeps branching until the line of inquiry begun with the central item has been exhausted.

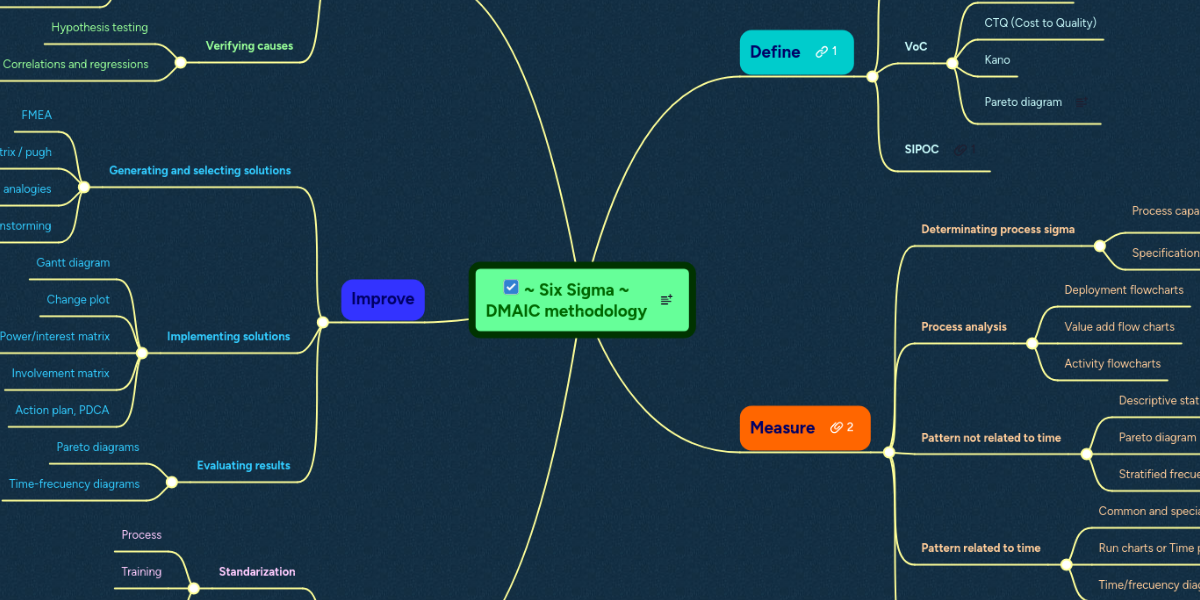

Six sigma ~ dmaic methodology | mindmeister mind map

The tree diagram shows the key goals, their sub-goals, and key tasks. It can help identify the sequence of tasks or functions required to accomplish an objective. The tree diagram can help translate customer desires into product characteristics. It can also be used like an Ishikawa diagram to uncover the causes of a particular problem:

Tree diagram - six sigma study guide

Tree Diagrams. The Tree Diagram takes a broad goal or idea and narrows it down into specific assign"ment, tasks or options. The systematic plan of attack provided by a Tree Diagram makes sure that no small task gets forgotten. In the process of creating the diagram, new and helpful ways to work towards the ultimate goal often emerge. When to Use.

Audio visual communication | visual communication, business ...

For example, an instruction such as 'Improve customer service' is too broad to do much with it. However, by using a CTQ Tree, you can drill-down this general goal, identify specific and measurable requirements that you can use to improve performance.Determining Critical-to-Quality customer requirements is a part of Lean Six Sigma training, which can be done through a Lean Six Sigma course.
